PNEUMATIC CYLINDER ACTUATED KNIFE GATE VALVE - Lug Type / FL | Automation Valves Manufacturer | Caliber Valves

Compliance: MSS SP - 81

Size Range: 50 TO 600 DN

Pressure Rating: PN 3 / PN 6 / PN 10

01 / 02
Automation Valves

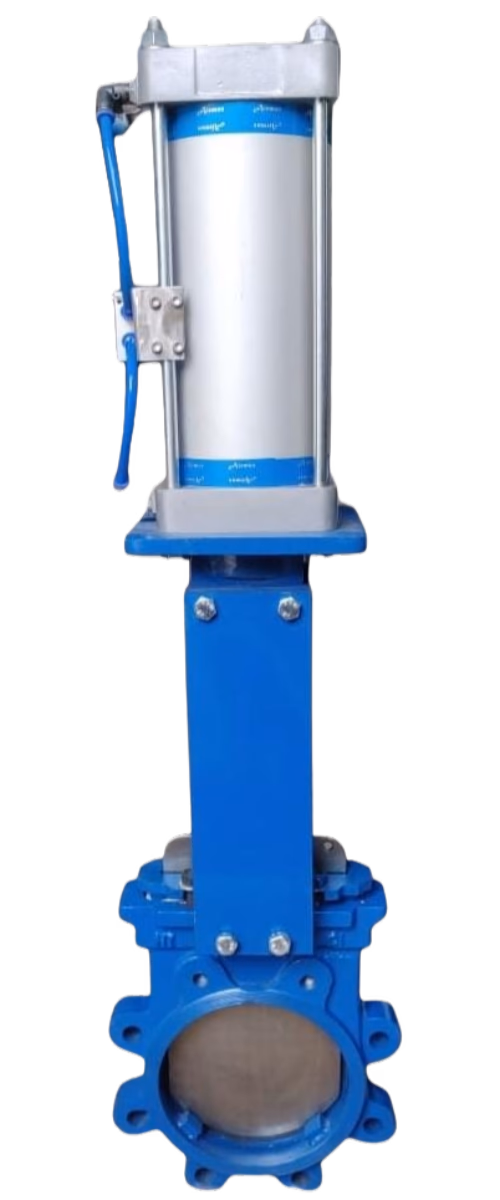

PNEUMATIC CYLINDER ACTUATED KNIFE GATE VALVE - Lug Type / FL

Pneumatic cylinder actuated knife gate Valve with double acting linear actuator for slurry applications.

Key Specifications
Size50 TO 600 DN
PressurePN6 - Upto 300 DN - PN3, 350 to 600 DN - WCB / SS - PN10
RatingPN 3 / PN 6 / PN 10
TemperatureUp to 120°C / 220°C / 285°C
MaterialCI / WCB / CF8 / CF8M
StandardsMSS SP - 81
ComplianceMSS SP - 81
Size Range50 TO 600 DN
Design FeaturesRound Port, OS & YT, Bolted Bonnet, Rising Stem
RatingPN 3 / PN 6 / PN 10
End ConnectionsLugged Wafer Type / Flanged Wafer Type #150
PressurePN6 - Upto 300 DN - PN3, 350 to 600 DN - WCB / SS - PN10
TemperatureUp to 120°C / 220°C / 285°C
Cylinder ActuatorPneumatic Cylinder Linear D/A Actuator
CharacteristicON - OFF Type
AccessoriesManual Overide / SOV + AFR + Tubing & Fittings
