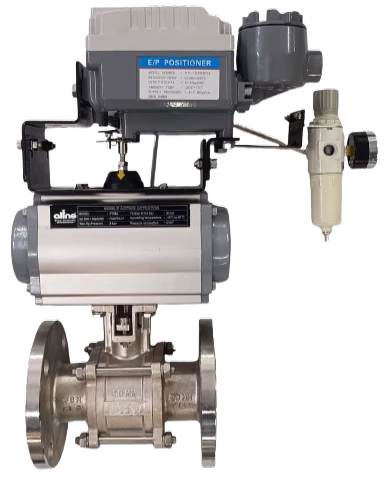

PNEUMATIC ACTUATED BALL VALVE - SE / FL / TC - Variant 2

Pneumatic actuated ball Valve with rotary single or double acting actuator for automated flow control.

Size Range

15 to 200 DN

Rating

150# / 300#

Temperature

Up to 180°C / 220°C / 280°C

Standards

ISO 17292 / ISO 12266-1

Compliance StandardsISO 17292 / ISO 12266-1

Size Range15 to 200 DN

MaterialWCB / CF8 / CF8M / CF3M

Design FeaturesFB, SP / 3P, Jacketed, Extended Stem, Fire Safe / Anti Static, 3 Way - L / T / X Port

Class/Rating150# / 300#

End ConnectionsScrewed / Flanged / Tri Clover

Actuator OptionsRotary - Single / Double Acting Actuator

Operating CharacteristicON - OFF Type, Pneumatic Positioner - Equal Percentage (Modulating) 4-20mA

Accessories (Optional)Manual Overide / Postion Indicator + SOV + AFR + SS Tubing & Fittings

Temperature RangeUp to 180°C / 220°C / 280°C
