PNEUMATIC ACTUATED BALL VALVE - SE / FL / TC | Automation Valves Manufacturer | Caliber Valves

Compliance: ISO 17292 / ISO 12266-1

Size Range: 15 to 200 DN

Pressure Rating: 150# / 300#

01 / 02
Automation Valves

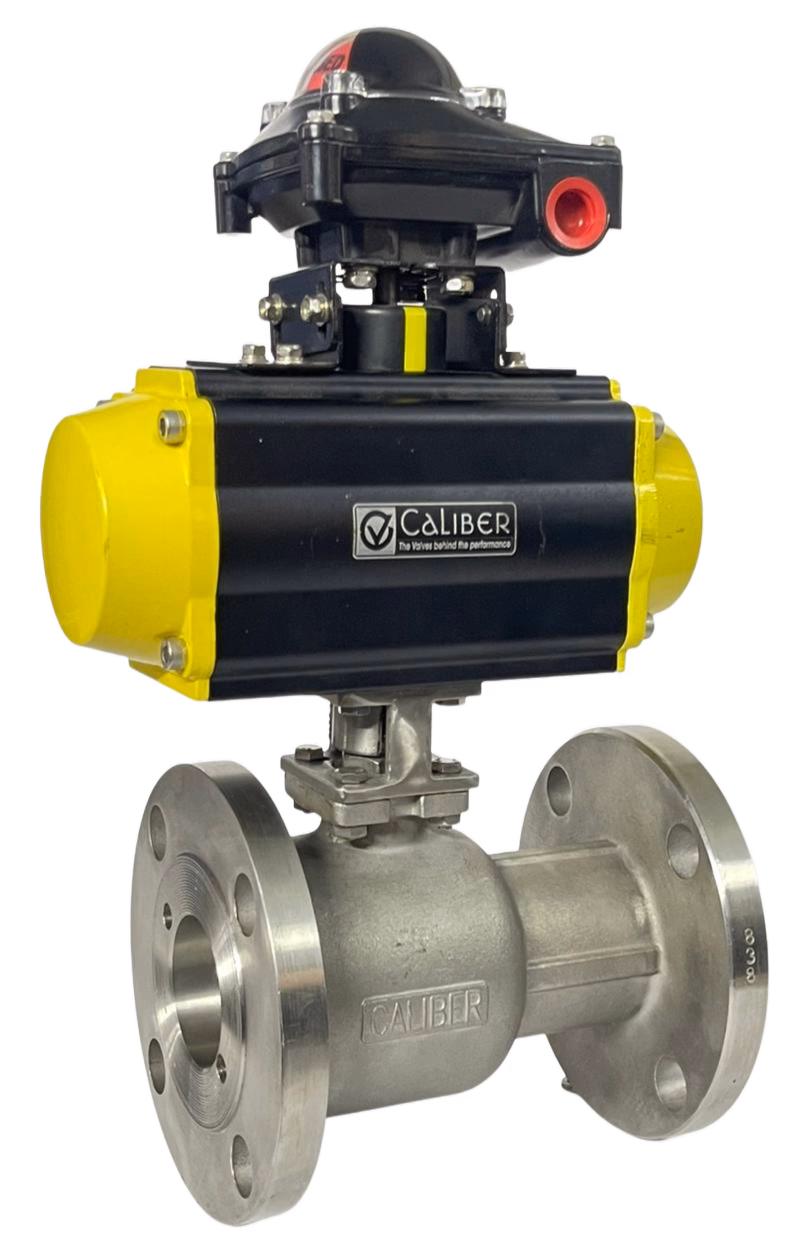

PNEUMATIC ACTUATED BALL VALVE - SE / FL / TC - Variant 1

Pneumatic actuated ball Valve with rotary single or double acting actuator for automated flow control.

Key Specifications
Size15 to 200 DN
Rating150# / 300#
TemperatureUp to 180°C / 220°C / 280°C
StandardsISO 17292 / ISO 12266-1
ComplianceISO 17292 / ISO 12266-1
Size Range15 to 200 DN
MaterialWCB / CF8 / CF8M / CF3M
Design FeaturesFB, SP / 3P, Jacketed, Extended Stem, Fire Safe / Anti Static, 3 Way - L / T / X Port
Rating150# / 300#
End ConnectionsScrewed / Flanged / Tri Clover
Actuator OptionsRotary - Single / Double Acting Actuator
CharacteristicON - OFF Type, Pneumatic Positioner - Equal Percentage (Modulating) 4-20mA
AccessoriesManual Overide / Postion Indicator + SOV + AFR + SS Tubing & Fittings
TemperatureUp to 180°C / 220°C / 280°C
