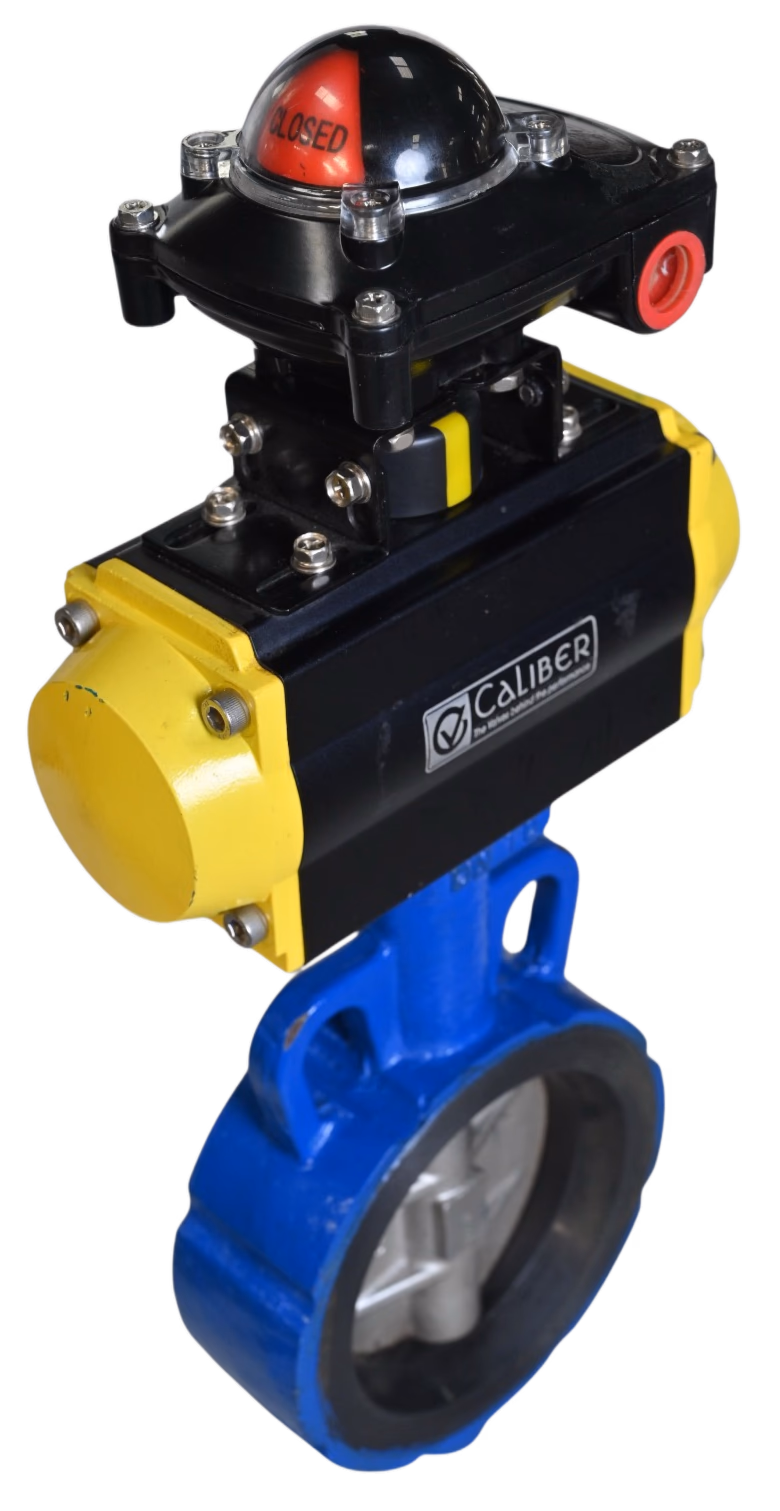

PNEUMATIC ACTUATED BUTTERFLY VALVE - Wafer / Double Flange / Lug Type - Variant 1
Pneumatic actuated butterfly Valve with rotary single or double acting actuator for automated throttling.
Key Specifications
Size40 to 600 DN
RatingPN 10 / PN 16 / 150#
TemperatureUp to 120°C / 220°C
MaterialCI / SGI / WCB / CF8 / CF8M
StandardsAPI 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1
ComplianceAPI 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1
Size Range40 to 600 DN
Design FeaturesCentric Disc / Double / Trible Offset Disc, Moulded / Replaceble Seat / Extended Stem
RatingPN 10 / PN 16 / 150#
End ConnectionsWafer End / Double Flange / Full Lug Type #150
Actuator OptionsRotary - Single / Double Acting Actuator
CharacteristicON - OFF Type, Pneumatic Positioner - Equal Percentage (Modulating) 4-20mA
AccessoriesManual Overide / Postion Indicator + SOV + AFR + SS Tubing & Fittings
TemperatureUp to 120°C / 220°C
