ELECTRIC ACTUATED BALL VALVE - SE / FL / TC | Automation Valves Manufacturer | Caliber Valves

Compliance: ISO 17292 / ISO 12266-1

Size Range: 15 to 200 DN

Pressure Rating: 150# / 300#

01 / 02
Automation Valves

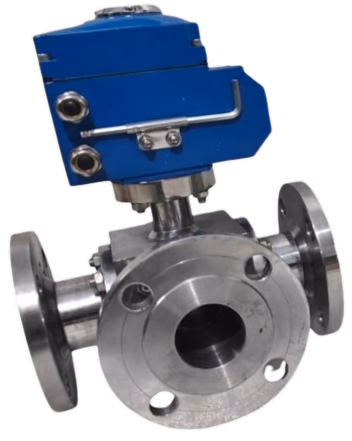

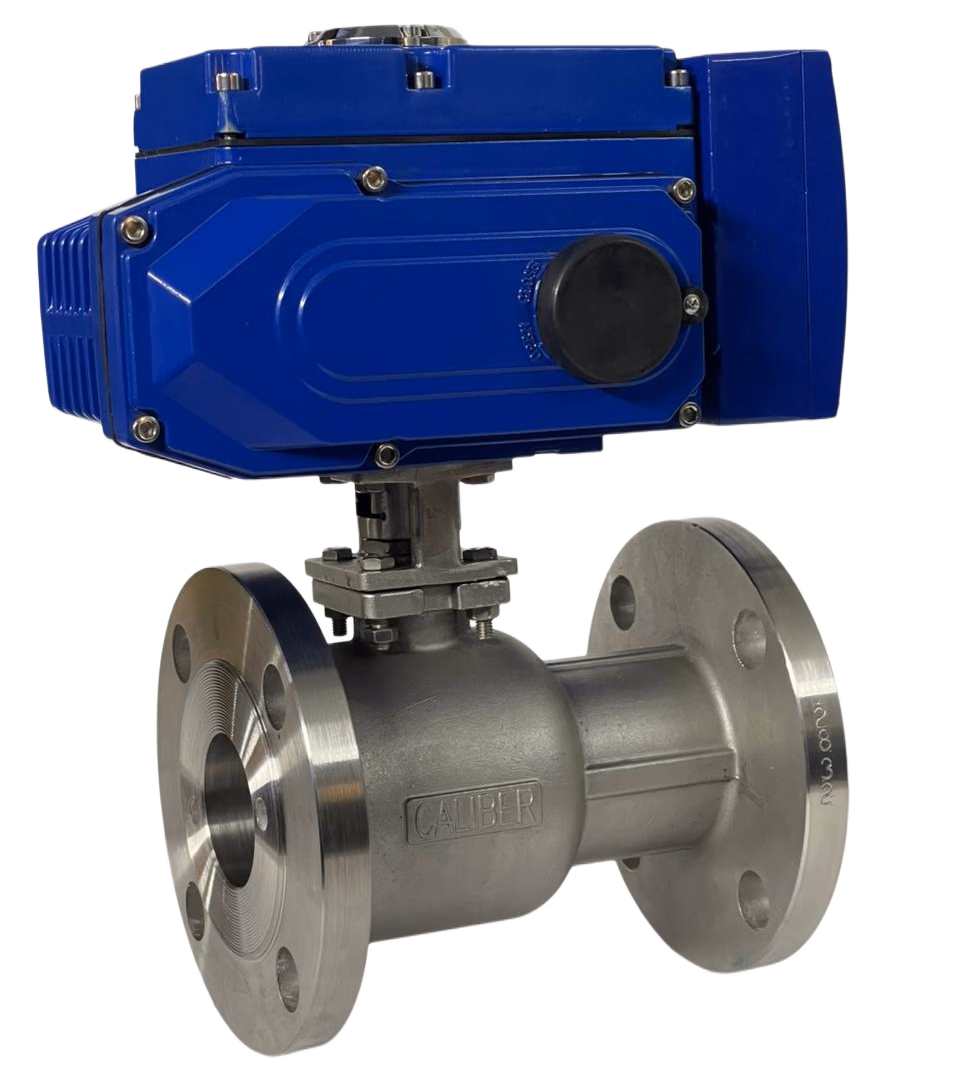

ELECTRIC ACTUATED BALL VALVE - SE / FL / TC - Variant 2

Electric actuated ball Valve with SP/3P actuator, IP 67 or explosion proof options for automated operation.

Key Specifications
Size15 to 200 DN
Rating150# / 300#
TemperatureUp to 180°C / 220°C / 280°C
MaterialWCB / CF8 / CF8M / CF3M
StandardsISO 17292 / ISO 12266-1
ComplianceISO 17292 / ISO 12266-1
Size Range15 to 200 DN
Design FeaturesFB, SP / 3P, Jacketed, Extended Stem, Fire Safe / Anti Static, 3 Way - L / T / X Port
Rating150# / 300#
End ConnectionsScrewed / Flanged / Tri Clover
Elec. ActuatorSP/3P, IP 67 / Explosion Proof, Power: SP-220V AC Std, 3P-380V AC, DC 24V
Actuator TypeON - OFF Type / Modulating Type (4-20mA) / Inteligent Type
TemperatureUp to 180°C / 220°C / 280°C
