2 Way ANGLE SEAT VALVE (Y Type Control Valve) - SE / TC / FL | Automation Valves Manufacturer | Caliber Valves

Size Range: 15 to 80 DN

Pressure Rating: PN 16

Automation Valves

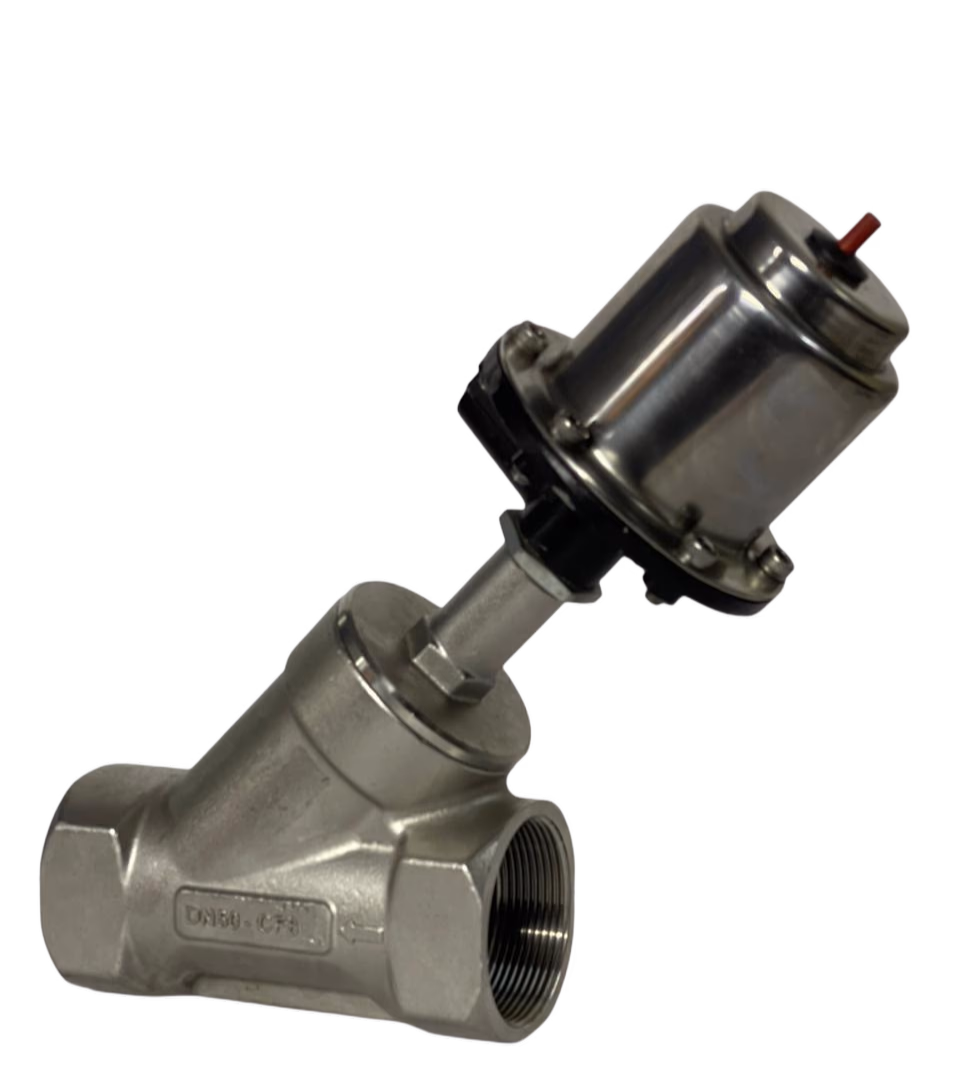

2 Way ANGLE SEAT VALVE (Y Type Control Valve) - SE / TC / FL

Angle seat Valve (Y type control Valve) with pneumatic linear spring return actuator for on-off control.

Key Specifications
Size15 to 80 DN
RatingPN 16
TemperatureUp to 180°C / 220°C
MaterialCF8 / CF8M / CF3M
Size Range15 to 80 DN
RatingPN 16
End ConnectionsScrewed - BSSP / BSPT/ NPT, Tri Clover End, Flanged 150#
TypeN/C, N/O
Cylinder ActuatorPneu. Linear Spring Return Actuator
TemperatureUp to 180°C / 220°C
CharacteristicON - OFF Type
AccessoriesSOV + AFR + Tubing & Fittings

See Also

Related in Automation Valves

PNEUMATIC ACTUATED BALL VALVE - SE / FL / TC - Variant 1 - Automation Valves by Caliber Valves | WCB / CF8 / CF8M / CF3M, Size: 15 to 200 DNAutomation Valves

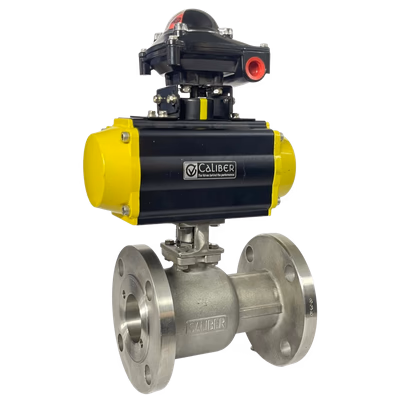

PNEUMATIC ACTUATED BALL VALVE - SE / FL / TC - Variant 1

PNEUMATIC ACTUATED BALL VALVE - SE / FL / TC - Variant 2 - Automation Valves by Caliber Valves | WCB / CF8 / CF8M / CF3M, Size: 15 to 200 DNAutomation Valves

PNEUMATIC ACTUATED BALL VALVE - SE / FL / TC - Variant 2

ELECTRIC ACTUATED BALL VALVE - SE / FL / TC - Variant 1 - Automation Valves by Caliber Valves | WCB / CF8 / CF8M / CF3M, Size: 15 to 200 DNAutomation Valves

ELECTRIC ACTUATED BALL VALVE - SE / FL / TC - Variant 1

ELECTRIC ACTUATED BALL VALVE - SE / FL / TC - Variant 2 - Automation Valves by Caliber Valves | WCB / CF8 / CF8M / CF3M, Size: 15 to 200 DNAutomation Valves

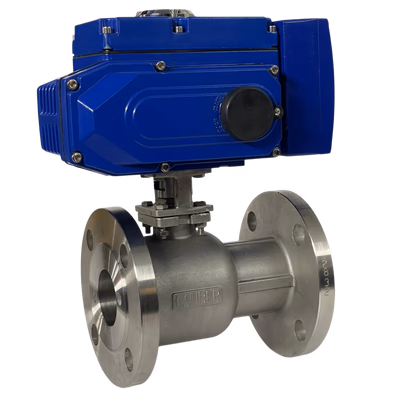

ELECTRIC ACTUATED BALL VALVE - SE / FL / TC - Variant 2
