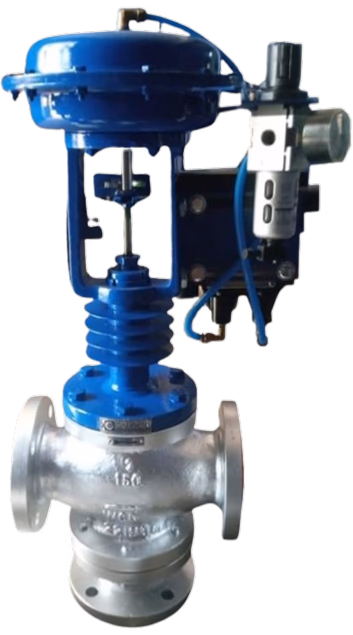

2 Way / 3 Way - PNEUMATIC DIAPHRAGM ACTUATED CONTROL VALVE - FL - Variant 2

Pneumatic diaphragm actuated control Valve with globe pattern and bolted finned bonnet for precise flow modulation.

Quick Specifications

Size Range

25 to 150 DN

Rating

150# / 300#

Temperature

Up to 220°C / 450°C

Material

WCB / CF8 / CF8M

Size Range25 to 150 DN
Design FeaturesGlobe Pattern / Bolted Finned Bonnet
Class/Rating150# / 300#
End ConnectionsFlanged 150# / 300#
Diaphragm ActuatorPneu. Linear Single Spring Type / Multi Spring Operated Type / Manual Overide
Body MaterialPressed Steel
Diaphragm MaterialNitrile / Reinforced Rubber
Leakage ClassClass VI - Soft Seat / Class IV - Metal to Metal
Temperature RangeUp to 220°C / 450°C
Operating CharacteristicON - OFF Type, Pneumatic Positioner - Equal Percentage (Modulating) 4-20mA
Accessories (Optional)Manual Overide / SOV + AFR + SS Tubing & Fittings
