2 Way / 3 Way - PNEUMATIC DIAPHRAGM ACTUATED CONTROL VALVE - FL | Automation Valves Manufacturer | Caliber Valves

Size Range: 25 to 150 DN

Pressure Rating: 150# / 300#

Automation Valves

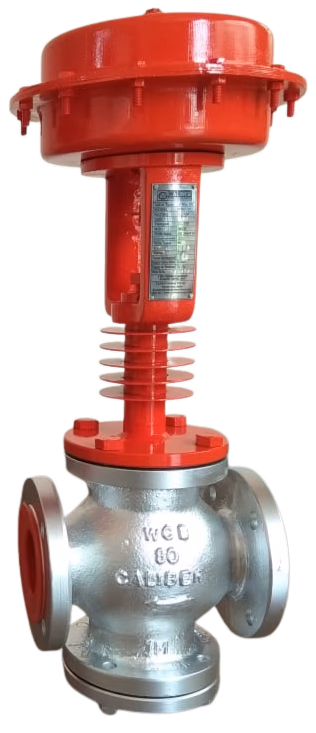

2 Way / 3 Way - PNEUMATIC DIAPHRAGM ACTUATED CONTROL VALVE - FL - Variant 1

Pneumatic diaphragm actuated control Valve with globe pattern and bolted finned bonnet for precise flow modulation.

Key Specifications
Size25 to 150 DN
Rating150# / 300#
TemperatureUp to 220°C / 450°C
MaterialWCB / CF8 / CF8M
Size Range25 to 150 DN
Design FeaturesGlobe Pattern / Bolted Finned Bonnet
Rating150# / 300#
End ConnectionsFlanged 150# / 300#
Diaphragm ActuatorPneu. Linear Single Spring Type / Multi Spring Operated Type / Manual Overide
BodyPressed Steel
DiaphragmNitrile / Reinforced Rubber
Leakage ClassClass VI - Soft Seat / Class IV - Metal to Metal
TemperatureUp to 220°C / 450°C
CharacteristicON - OFF Type, Pneumatic Positioner - Equal Percentage (Modulating) 4-20mA
AccessoriesManual Overide / SOV + AFR + SS Tubing & Fittings
