Automation Valves

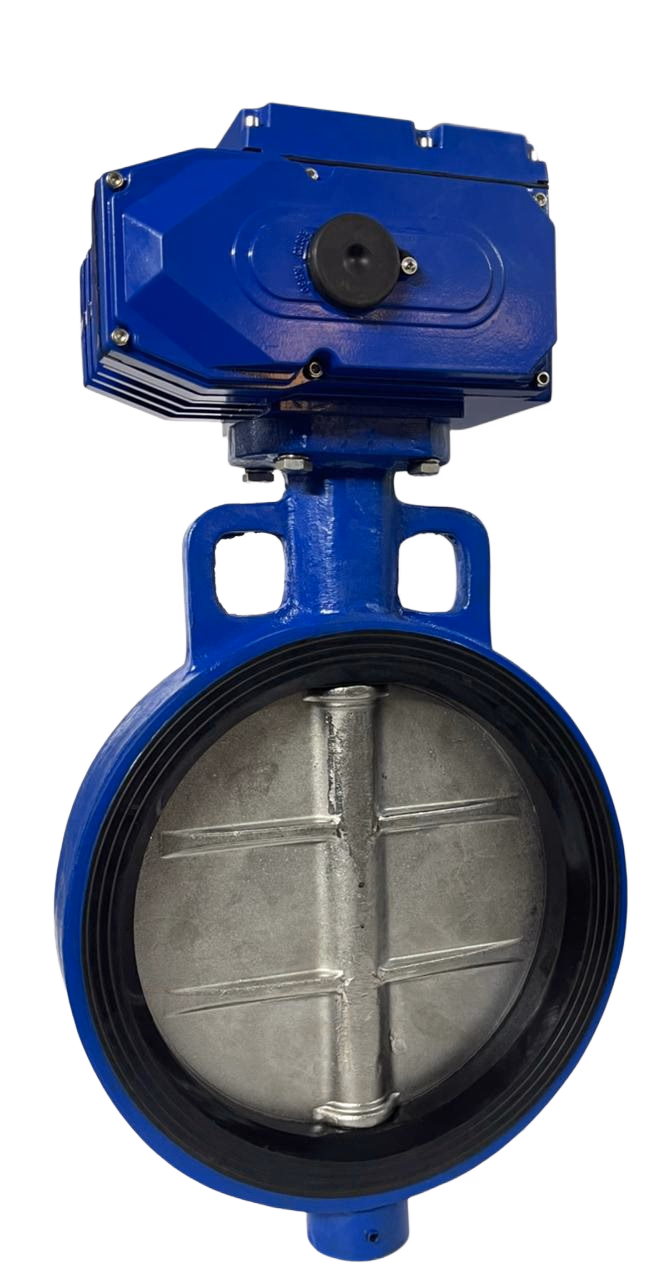

ELECTRIC ACTUATED BUTTERFLY VALVE - Wafer / Double Flange / Lug Type
Electric actuated butterfly Valve with SP/3P actuator, IP 67 or explosion proof options.
Key Specifications
Size40 to 400 DN
RatingPN 10 / PN 16 / 150#
TemperatureUp to 120°C / 220°C
MaterialCI / SGI / WCB / CF8 / CF8M
StandardsAPI 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1
ComplianceAPI 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1
Size Range40 to 400 DN
Design FeaturesCentric Disc / Double / Trible Offset Disc, Moulded / Replaceble Seat / Extended Stem
RatingPN 10 / PN 16 / 150#
End ConnectionsWafer End / Double Flange / Full Lug Type #150
Elec. ActuatorSP/3P, IP 67 / Explosion Proof, Power: SP-220V AC Std, 3P-380V AC, DC 24V
Actuator TypeON - OFF Type / Modulating Type (4-20mA) / Inteligent Type
TemperatureUp to 120°C / 220°C
