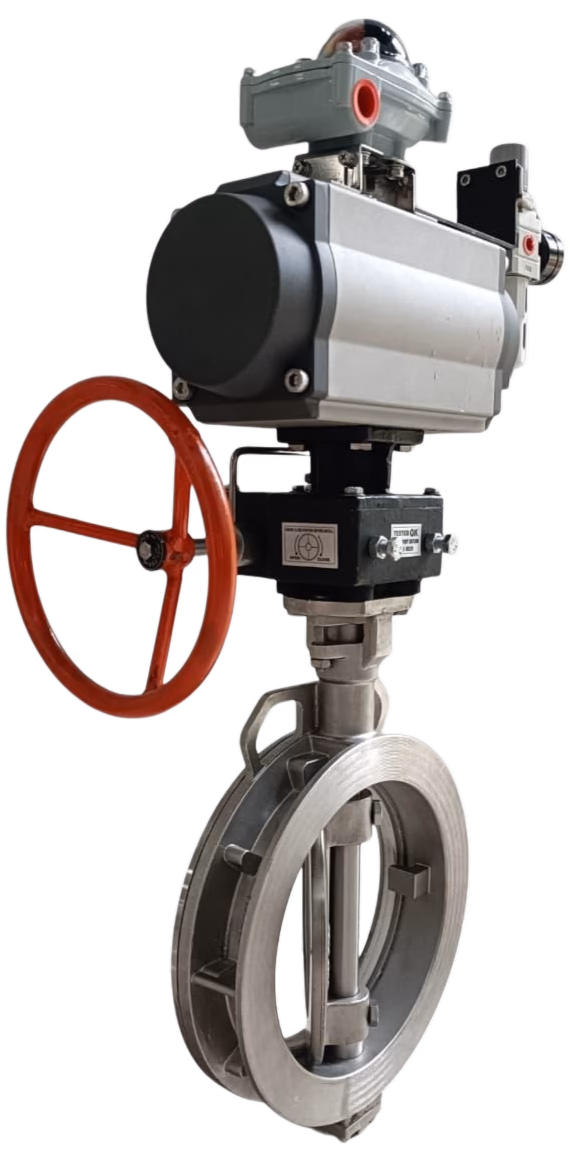

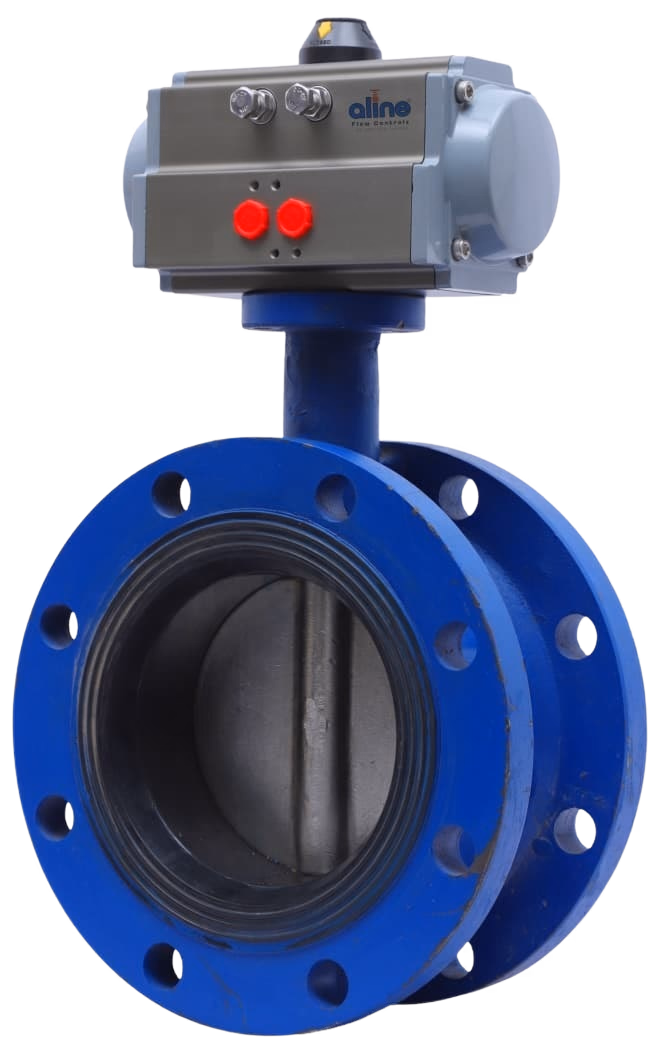

PNEUMATIC ACTUATED BUTTERFLY VALVE - Wafer / Double Flange / Lug Type - Variant 2

Pneumatic actuated butterfly Valve with rotary single or double acting actuator for automated throttling.

Size Range

40 to 600 DN

Rating

PN 10 / PN 16 / 150#

Temperature

Up to 120°C / 220°C

Material

CI / SGI / WCB / CF8 / CF8M

Standards

API 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1

Compliance StandardsAPI 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1

Size Range40 to 600 DN

Design FeaturesCentric Disc / Double / Trible Offset Disc, Moulded / Replaceble Seat / Extended Stem

Class/RatingPN 10 / PN 16 / 150#

End ConnectionsWafer End / Double Flange / Full Lug Type #150

Actuator OptionsRotary - Single / Double Acting Actuator

Operating CharacteristicON - OFF Type, Pneumatic Positioner - Equal Percentage (Modulating) 4-20mA

Accessories (Optional)Manual Overide / Postion Indicator + SOV + AFR + SS Tubing & Fittings

Temperature RangeUp to 120°C / 220°C
