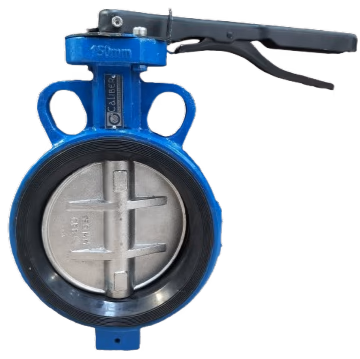

CI / CS / BUTTERFLY VALVE - Wafer / Double Flange / Lug Type - Variant 2

Butterfly Valve with centric, double, or triple offset disc design, available in wafer, double flange, or lug type configurations.

Size Range

40 to 600 NB

Pressure

Up to 10 / 16 / 24 Kg/cm2

Rating

PN 10 / PN 16 / #150

Temperature

Up to 120°C / 220°C

Material

CI / SGI / WCB / CF8 / CF8M

Standards

API 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1

Compliance StandardsAPI 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1

Size Range40 to 600 NB

Design FeaturesCentric Disc / Double / Trible Offset Disc, Moulded / Replaceble Seat / Extended Stem

Class/RatingPN 10 / PN 16 / #150

End ConnectionsWafer End / Double Flange / Full Lug Type #150

Pressure RatingUp to 10 / 16 / 24 Kg/cm2

Temperature RangeUp to 120°C / 220°C
