SS SPHERICAL DISC BUTTERFLY VALVE - Wafer / Lug Type | Butterfly Valves Manufacturer | Caliber Valves

Compliance: API 609 Category B / BS EN 593 / ASME B16.34 / ISO 5211 / API 598 / ISO 12266-1

Size Range: 40 to 600 DN

Pressure Rating: 150# / 300#

Butterfly Valves

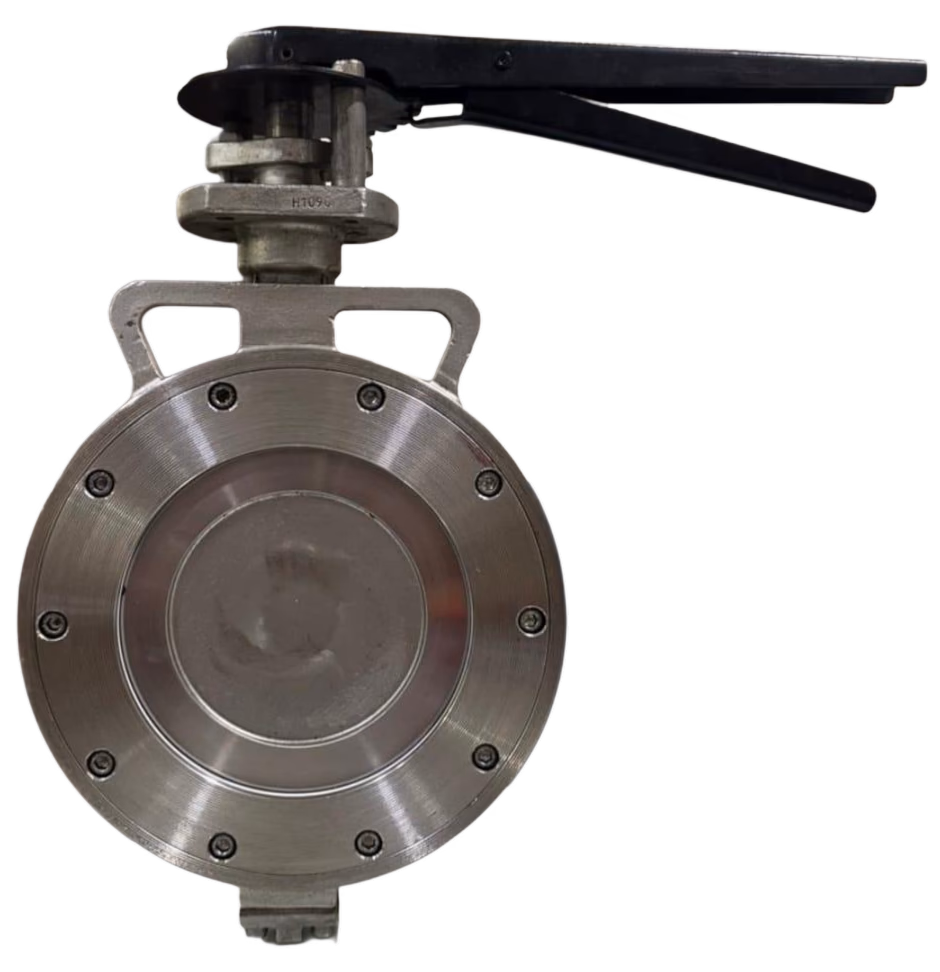

SS SPHERICAL DISC BUTTERFLY VALVE - Wafer / Lug Type

Stainless Steel Spherical Disc Butterfly Valve with double eccentric disc design and replaceable seat.

Key Specifications
Size40 to 600 DN
PressureUp to 24 Kg/cm2
Rating150# / 300#
TemperatureUp to 180°C / 220°C
MaterialWCB / CF8 / CF8M
StandardsAPI 609 Category B / BS EN 593 / ASME B16.34 / ISO 5211 / API 598 / ISO 12266-1
ComplianceAPI 609 Category B / BS EN 593 / ASME B16.34 / ISO 5211 / API 598 / ISO 12266-1
Size Range40 to 600 DN
Design FeaturesDouble Eccentric Disc, Replaceble Seat / HL / GO
Rating150# / 300#
End ConnectionsWafer End / Lug Type #150 / #300
PressureUp to 24 Kg/cm2
TemperatureUp to 180°C / 220°C
