CI / CS / BUTTERFLY VALVE - Wafer / Double Flange / Lug Type | Butterfly Valves Manufacturer | Caliber Valves

Compliance: API 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1

Size Range: 40 to 600 NB

Pressure Rating: PN 10 / PN 16 / #150

Butterfly Valves

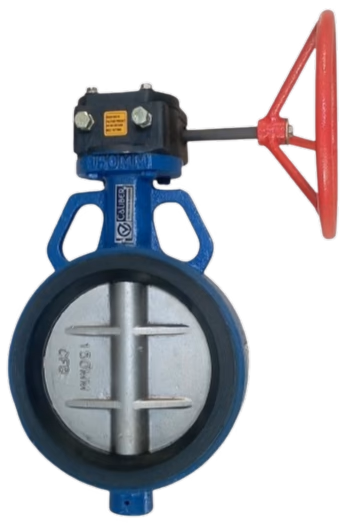

CI / CS / BUTTERFLY VALVE - Wafer / Double Flange / Lug Type - Variant 1

Butterfly Valve with centric, double, or triple offset disc design, available in wafer, double flange, or lug type configurations.

Key Specifications
Size40 to 600 NB
PressureUp to 10 / 16 / 24 Kg/cm2
RatingPN 10 / PN 16 / #150
TemperatureUp to 120°C / 220°C
MaterialCI / SGI / WCB / CF8 / CF8M
StandardsAPI 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1
ComplianceAPI 609 Category A / BS EN 593 / ISO 5752 Tab 5 / API 602 / ISO 5211 / API 598 / ISO 12266-1
Size Range40 to 600 NB
Design FeaturesCentric Disc / Double / Trible Offset Disc, Moulded / Replaceble Seat / Extended Stem
RatingPN 10 / PN 16 / #150
End ConnectionsWafer End / Double Flange / Full Lug Type #150
PressureUp to 10 / 16 / 24 Kg/cm2
TemperatureUp to 120°C / 220°C
