CS / SS - 2P BALL VALVE - BW / FL - Variant 2 - Ball Valves by Caliber Valves | WCB / CF8 / CF8M / CF3M, Size: 15 to 300 DN
Ball Valves

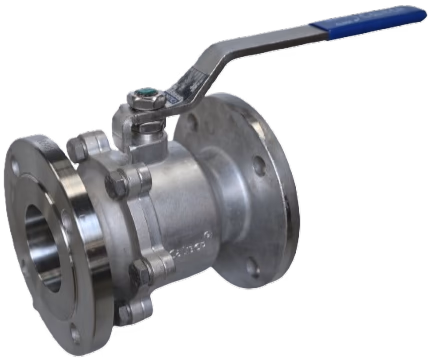

CS / SS - 2P BALL VALVE - BW / FL - Variant 2

Two-piece ball Valve with trunnion mounting, featuring full bore design and extended stem.

Quick Specifications

Size Range

15 to 300 DN

Pressure

Up to 22 / 57 / 115 Kg/cm2

Rating

150# / 300# / 600#

Temperature

Up to 180°C / 220°C / 280°C

Material

WCB / CF8 / CF8M / CF3M

Standards

ISO 17292 / ISO 12266-1

Compliance StandardsISO 17292 / ISO 12266-1
Size Range15 to 300 DN
Design FeaturesFB, Two Piece, Trunnion, Extended Stem, Fire Safe / Anti Static, HL / GO
Class/Rating150# / 300# / 600#
End ConnectionsBW / Flanged 150# / 300# / 600#
Pressure RatingUp to 22 / 57 / 115 Kg/cm2
Temperature RangeUp to 180°C / 220°C / 280°C
