CI BALL VALVE - FL | Ball Valves Manufacturer | Caliber Valves

Compliance: BS 5159 / 6755-1

Size Range: 25 to 200 DN

Pressure Rating: 125#

Ball Valves

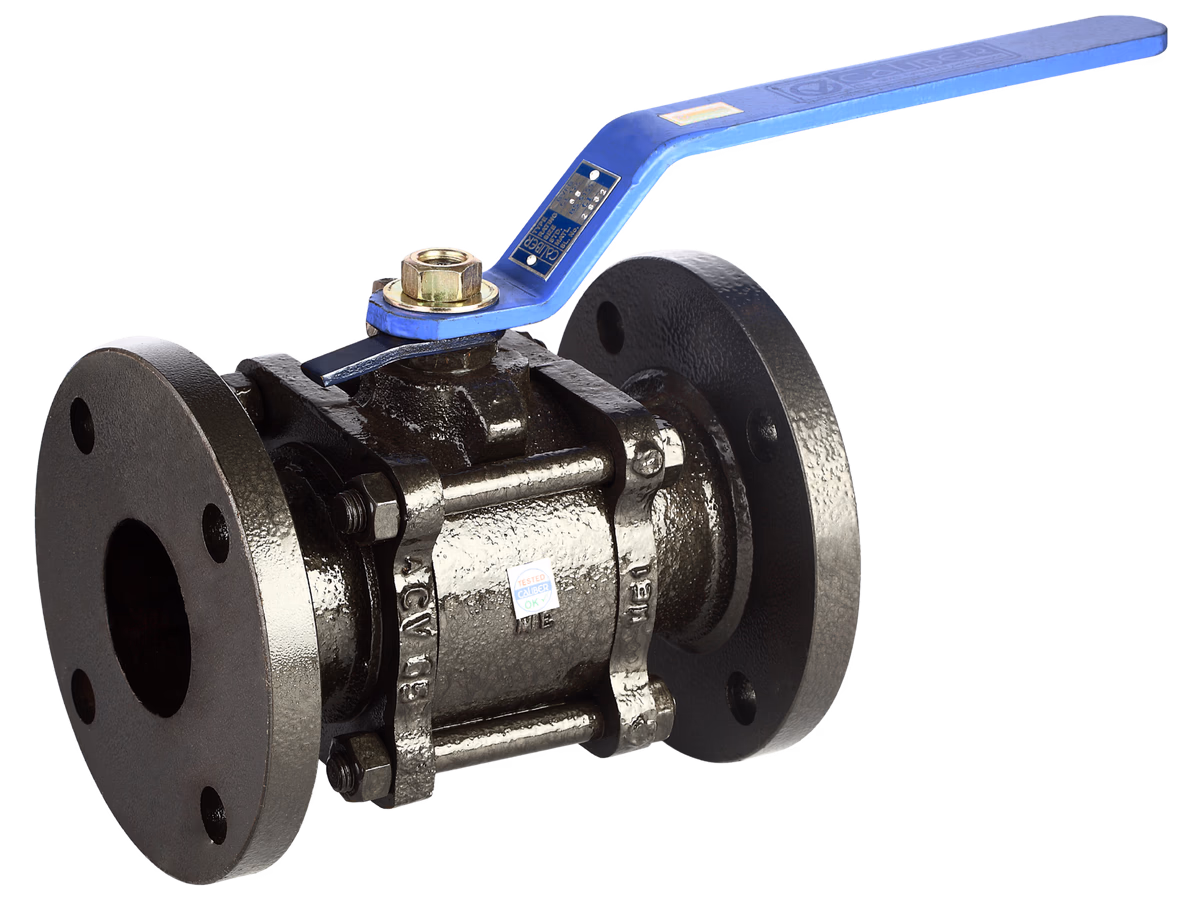

CI BALL VALVE - FL

Cast Iron Ball Valve compliant with BS 5159 / 6755-1, featuring full bore design with three-piece construction. Available in sizes 25 to 200 DN.

Key Specifications
Size25 to 200 DN
PressureUp to 14 Kg/cm2
Rating125#
TemperatureUp to 180°C
MaterialASTM A48 Cl 30
StandardsBS 5159 / 6755-1
ComplianceBS 5159 / 6755-1
Size Range25 to 200 DN
Design FeaturesFull Bore, Three Piece, Blow out Proof Stem, Floating Ball, HL
Rating125#
End ConnectionsFlanged - BS 10 Table D / E, 150# FF
PressureUp to 14 Kg/cm2
TemperatureUp to 180°C
