CS / SS - SP / 3P BALL VALVE - Wafer / FL - Variant 3 - Ball Valves by Caliber Valves | WCB / CF8 / CF8M / CF3M, Size: 15 to 300 DN
Ball Valves

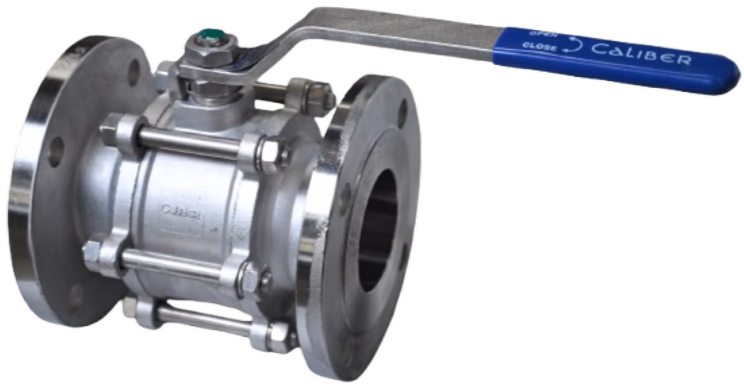

CS / SS - SP / 3P BALL VALVE - Wafer / FL - Variant 3

Full bore ball Valve in wafer or flanged end configuration, featuring jacketed design option and extended stem.

Quick Specifications

Size Range

15 to 300 DN

Pressure

Up to 22 / 57 Kg/cm2

Rating

150# / 300#

Temperature

Up to 180°C / 220°C / 280°C

Material

WCB / CF8 / CF8M / CF3M

Standards

ISO 17292 / ISO 12266-1

Compliance StandardsISO 17292 / ISO 12266-1
Size Range15 to 300 DN
Design FeaturesFB, SP / 3P, Jacketed, Extended Stem, Fire Safe / Anti Static, 3 Way - L / T / X Port HL / GO
Class/Rating150# / 300#
End ConnectionsWafer End / Flanged 150# / 300#
Pressure RatingUp to 22 / 57 Kg/cm2
Temperature RangeUp to 180°C / 220°C / 280°C
