MS / SS SQUARE PORT KINFE / SLIDE GATE VALVE - FL - Knife Edge Gate/Slide Valves by Caliber Valves | MS / SS 304 / SS 316 - Fabricated, Size: Sq Port 125 x 125 to 1400 x 1400 / Rectangular Port Design also available
Knife Edge Gate/Slide Valves

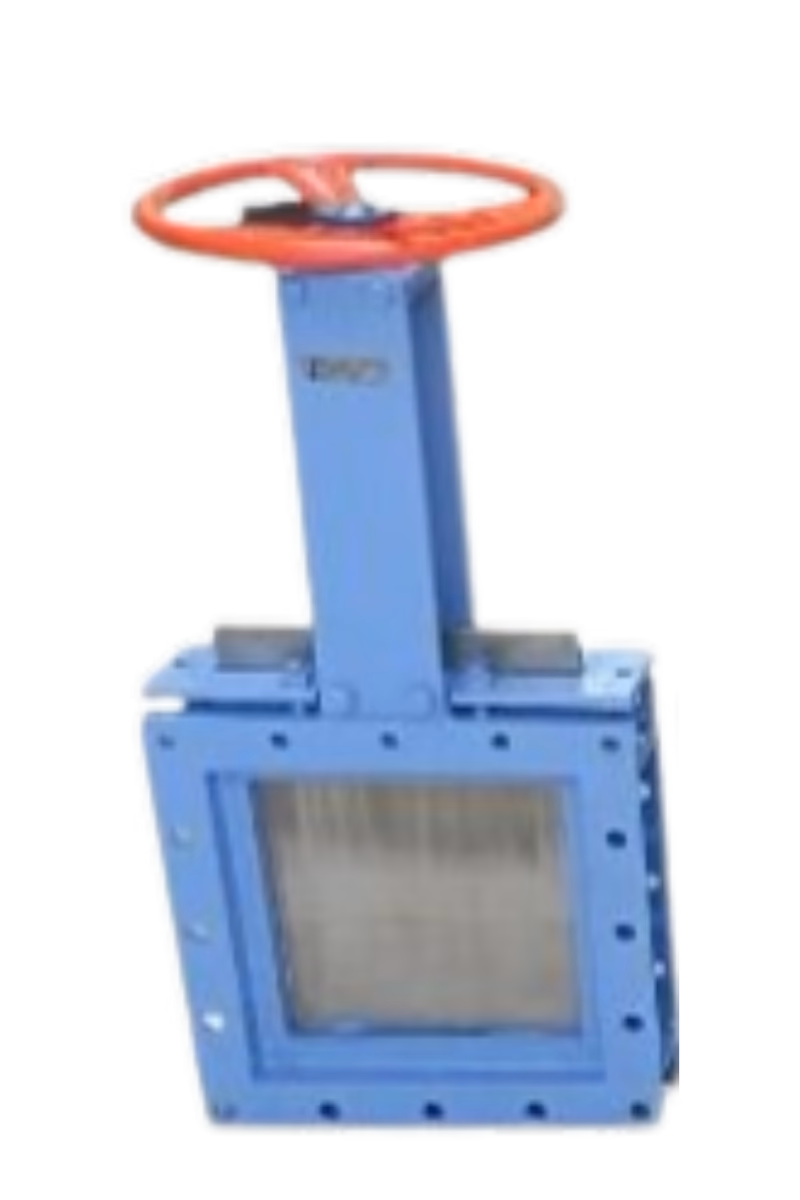

MS / SS SQUARE PORT KINFE / SLIDE GATE VALVE - FL

Square port knife/slide gate Valve with OS & YT design and rising stem for dry bulk material handling.

Quick Specifications

Size Range

Sq Port 125 x 125 to 1400 x 1400 / Rectangular Port Design also available

Pressure

Up to 6 Kg/cm2

Rating

PN 3 / PN 6

Temperature

Up to 120°C / 220°C

Material

MS / SS 304 / SS 316 - Fabricated

Standards

CVPL Std

Compliance StandardsCVPL Std
Size RangeSq Port 125 x 125 to 1400 x 1400 / Rectangular Port Design also available
Design FeaturesSq Port, OS & YT, Bolted Bonnet, Rising Stem, HW / GO / Pnue. Cylinder Actuated
Class/RatingPN 3 / PN 6
End ConnectionsWafer Square Flange Design
Pressure RatingUp to 6 Kg/cm2
Temperature RangeUp to 120°C / 220°C
