CI / CS / SS KNIFE GATE VALVE - Lug Type / FL | Knife Edge Gate/Slide Valves Manufacturer | Caliber Valves

Compliance: MSS SP - 81

Size Range: 50 TO 600 DN

Pressure Rating: PN 3 / PN 6 / PN 10

Knife Edge Gate/Slide Valves

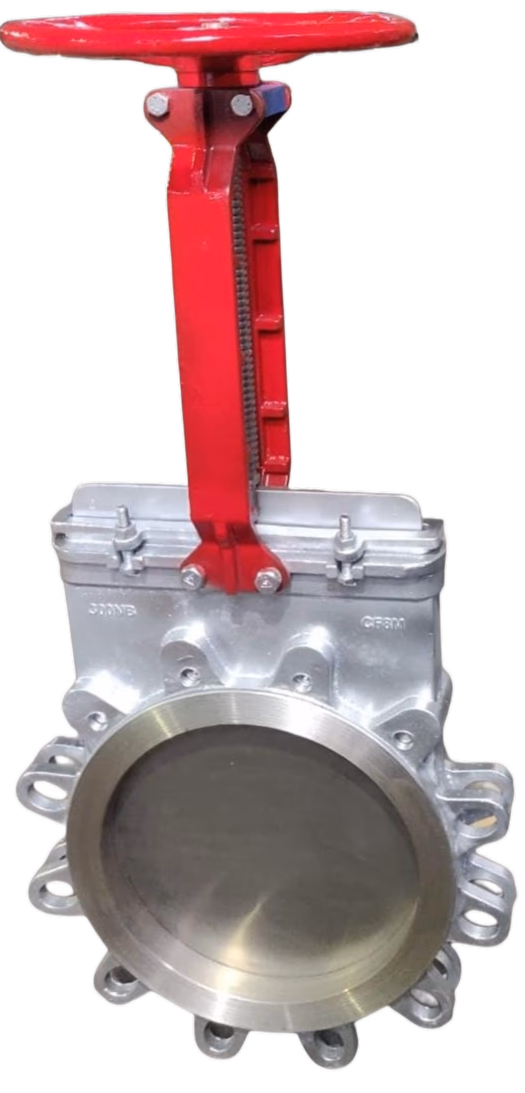

CI / CS / SS KNIFE GATE VALVE - Lug Type / FL

Knife Gate Valve with round port and OS & YT design for slurry and viscous media applications.

Key Specifications
Size50 TO 600 DN
PressurePN6 - Upto 300 DN - PN3, 350 to 600 DN - WCB / SS - PN10
RatingPN 3 / PN 6 / PN 10
TemperatureUp to 120°C / 220°C / 285°C
MaterialCI / WCB / CF8 / CF8M
StandardsMSS SP - 81
ComplianceMSS SP - 81
Size Range50 TO 600 DN
Design FeaturesRound Port, OS & YT, Bolted Bonnet, Rising Stem, HW / GO
RatingPN 3 / PN 6 / PN 10
End ConnectionsLugged Wafer Type / Flanged Wafer Type #150
PressurePN6 - Upto 300 DN - PN3, 350 to 600 DN - WCB / SS - PN10
TemperatureUp to 120°C / 220°C / 285°C
