CI / CS / SS DUAL PLATE CHECK VALVE - Wafer / DF - Wafer/Dual Plate Check Valves by Caliber Valves | CI / SGI / WCB / CF8 / CF8M, Size: 50 to 1200 DN
Wafer/Dual Plate Check Valves

CI / CS / SS DUAL PLATE CHECK VALVE - Wafer / DF

Dual Plate Check Valve with spring loaded dual disc design in compact wafer or double flange configuration.

Quick Specifications

Size Range

50 to 1200 DN

Pressure

Up to 10 / 16 Kg/cm2

Rating

PN 10 / PN 16

Temperature

Up to 80°C / 120°C / 220°C

Material

CI / SGI / WCB / CF8 / CF8M

Standards

API 600 / API 602 / ASME B16.34 / API 598 / ISO 12266-1

Compliance StandardsAPI 600 / API 602 / ASME B16.34 / API 598 / ISO 12266-1
Size Range50 to 1200 DN
Design FeaturesDual Disc - Spring Loaded, Compact Wafer / Double Flange Design
Class/RatingPN 10 / PN 16
End ConnectionsWafer End / Double Flanged #150
Pressure RatingUp to 10 / 16 Kg/cm2
Temperature RangeUp to 80°C / 120°C / 220°C

Related Products in Wafer/Dual Plate Check Valves

CI / CS / SS WAFER CHECK VALVE - Wafer - Variant 1 - Wafer/Dual Plate Check Valves by Caliber Valves | CI / WCB / CF8 / CF8M, Size: 25 to 600 DNWafer/Dual Plate Check Valves

CI / CS / SS WAFER CHECK VALVE - Wafer - Variant 1

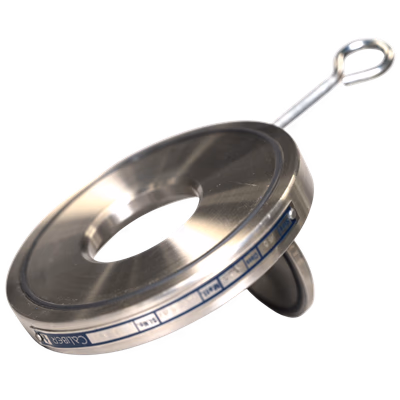

CI / CS / SS WAFER CHECK VALVE - Wafer - Variant 2 - Wafer/Dual Plate Check Valves by Caliber Valves | CI / WCB / CF8 / CF8M, Size: 25 to 600 DNWafer/Dual Plate Check Valves

CI / CS / SS WAFER CHECK VALVE - Wafer - Variant 2

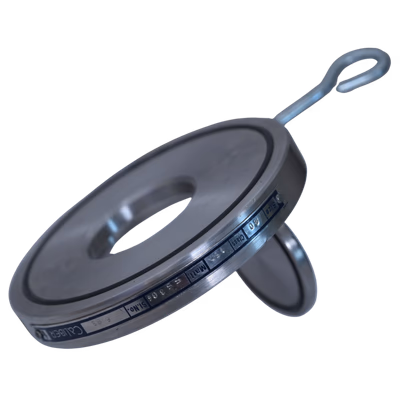

CI / CS / SS WAFER CHECK VALVE - Wafer - Variant 3 - Wafer/Dual Plate Check Valves by Caliber Valves | CI / WCB / CF8 / CF8M, Size: 25 to 600 DNWafer/Dual Plate Check Valves
