CI / CS / SS WAFER CHECK VALVE - Wafer | Wafer/Dual Plate Check Valves Manufacturer | Caliber Valves

Compliance: API 6D / API 598

Size Range: 25 to 600 DN

Pressure Rating: PN 10 / PN 16

Wafer/Dual Plate Check Valves

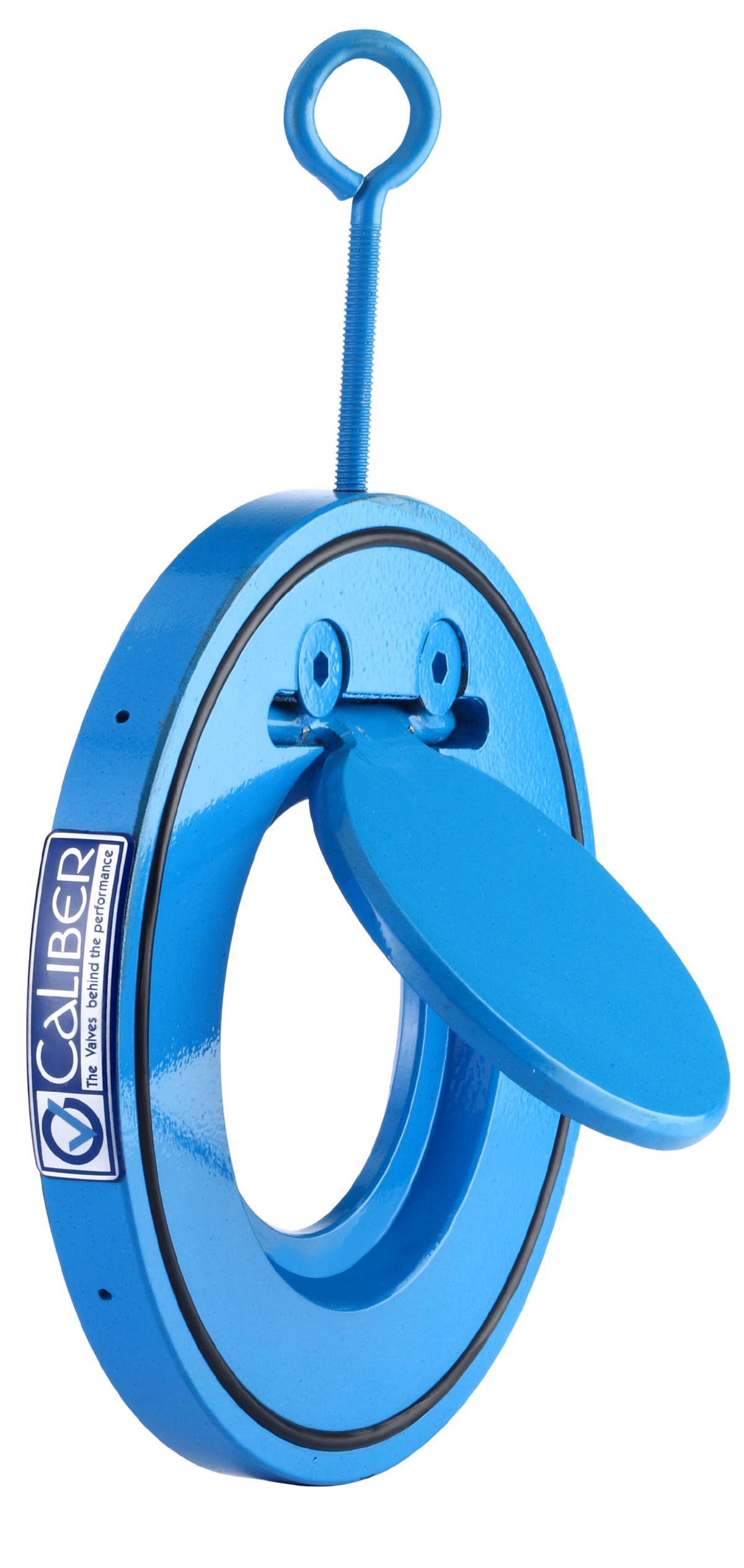

CI / CS / SS WAFER CHECK VALVE - Wafer - Variant 1

Bubble tight wafer check Valve with flap (swing type) gravity force mechanism in compact design.

Key Specifications
Size25 to 600 DN
PressureUp to 10 / 16 Kg/cm2
RatingPN 10 / PN 16
TemperatureUp to 120°C / 180°C / 220°C
MaterialCI / WCB / CF8 / CF8M
StandardsAPI 6D / API 598
ComplianceAPI 6D / API 598
Size Range25 to 600 DN
Design FeaturesBubble Tight, Flap (Swing Type) Gravity Force, Compact Design
RatingPN 10 / PN 16
End ConnectionsWafer End to Suit #150 Flange
PressureUp to 10 / 16 Kg/cm2
TemperatureUp to 120°C / 180°C / 220°C
