FS LIFT CHECK VALVE - SE / SW / BW / FL | Lift Check Valves (NRV) Manufacturer | Caliber Valves

Compliance: API 602 / ISO 15761 / ASME B16.34 / API 598 / ISO 12266-1

Size Range: 15 to 50 DN

Pressure Rating: 800# / 1500# / 2500#

Lift Check Valves (NRV)

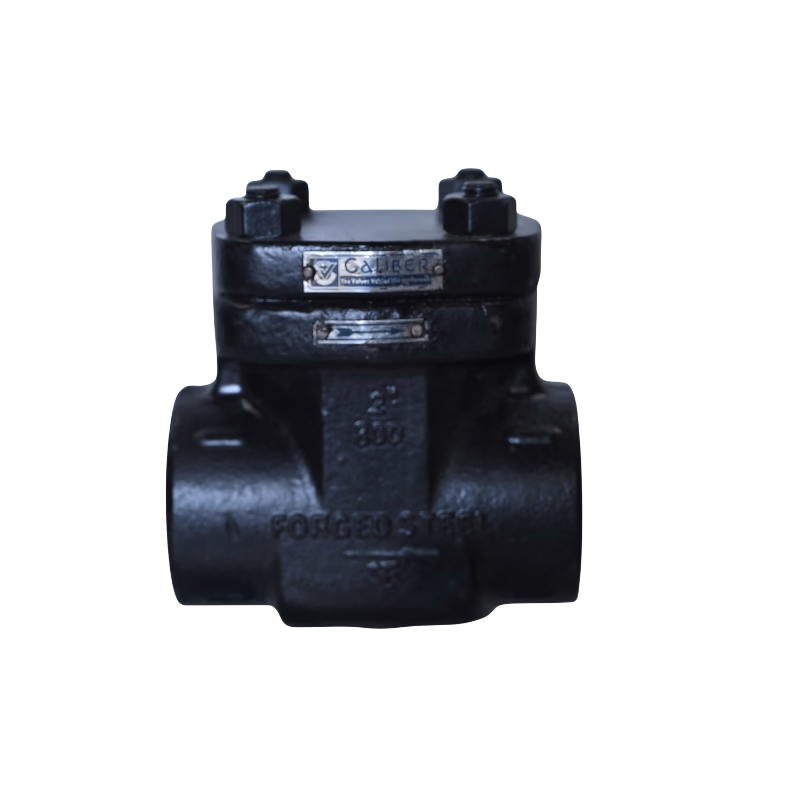

FS LIFT CHECK VALVE - SE / SW / BW / FL

Forged Steel Lift Check Valve featuring reduced bore and piston lift up mechanism with guided disc for high-pressure applications.

Key Specifications
Size15 to 50 DN
PressureUp to 155 / 287 / 477 Kg/cm2
Rating800# / 1500# / 2500#
TemperatureUp to 450°C
MaterialA105 / F304 / F316 / Duplex / Super Duplex / Alloy Steel
StandardsAPI 602 / ISO 15761 / ASME B16.34 / API 598 / ISO 12266-1
ComplianceAPI 602 / ISO 15761 / ASME B16.34 / API 598 / ISO 12266-1
Size Range15 to 50 DN
Design FeaturesRB, Piston Lift Up, Guided Disc, Spring Loaded, Bolted / Welded Cover
Rating800# / 1500# / 2500#
End ConnectionsScrewed - BSPP / BSPT / NPT, SW / BW, Flanged 150# / 300# / 600#
PressureUp to 155 / 287 / 477 Kg/cm2
TemperatureUp to 450°C
