SS NEEDLE VALVE SE / SW / BW / FL - Variant 3 - Needle Valves by Caliber Valves | CS / SS 304 / SS 316 / Spl. Matl., Size: 6 to 50 DN
Needle Valves

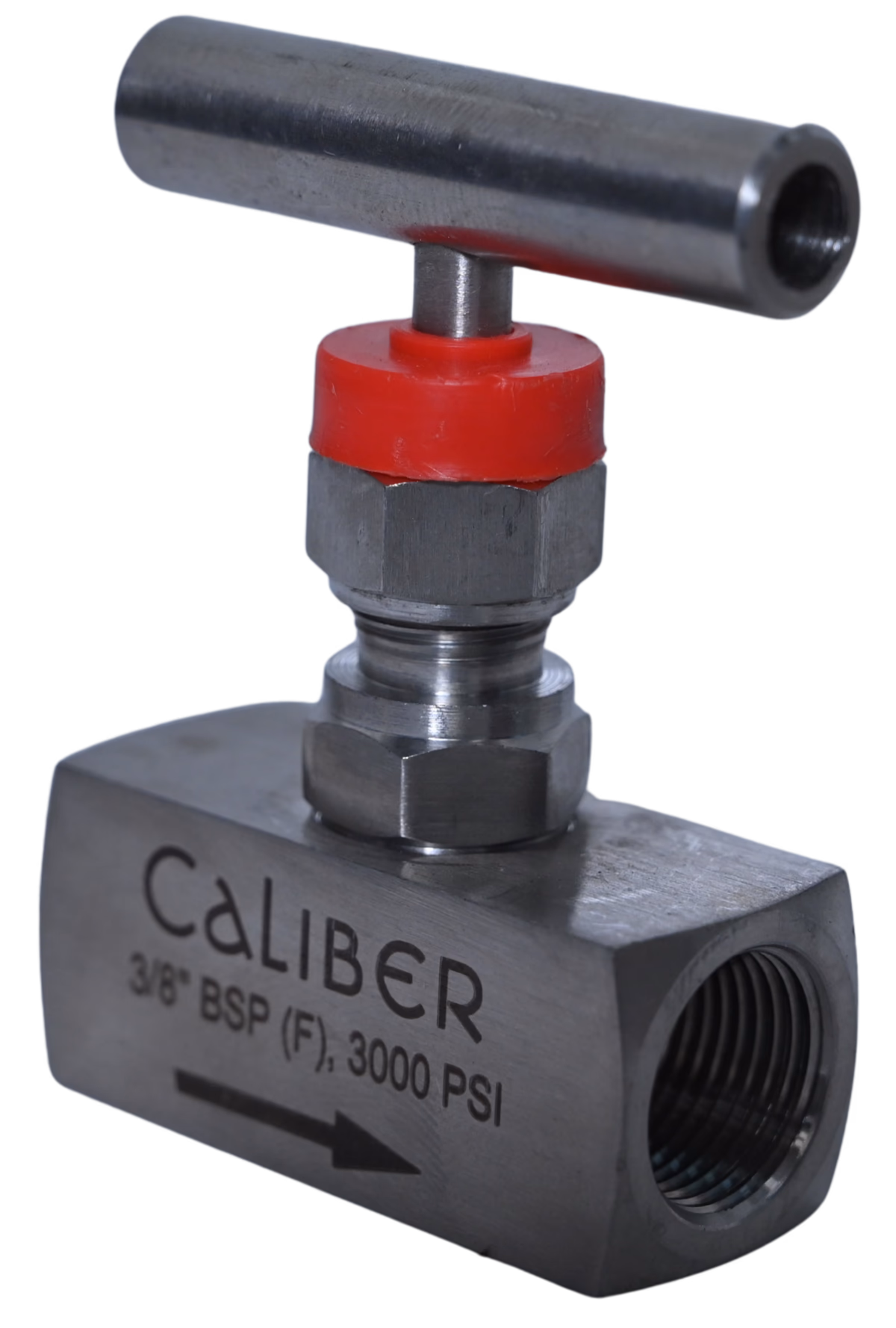

SS NEEDLE VALVE SE / SW / BW / FL - Variant 3

Stainless Steel Needle Valve available in straight, 3-way, angle type, and cross type configurations for precise flow control.

Quick Specifications

Size Range

6 to 50 DN

Pressure

1500 / 3000 / 6000 / 10000 PSI

Temperature

Up to 220°C / 500°C

Material

CS / SS 304 / SS 316 / Spl. Matl.

Standards

CVPL Std / ISO 12266-1

Compliance StandardsCVPL Std / ISO 12266-1
Size Range6 to 50 DN
TypeStrainght / 3Way / Angle Type / Cross Type / Panel Mounting / Union Bonnet
Design FeaturesBar Stock / Forged / T Handle / Knob Handle / Hand Wheel
End ConnectionsScrewed BSPP / BSPT / NPT, Tube End Etc..
Pressure Rating1500 / 3000 / 6000 / 10000 PSI
Temperature RangeUp to 220°C / 500°C
