Flush Bottom Valves

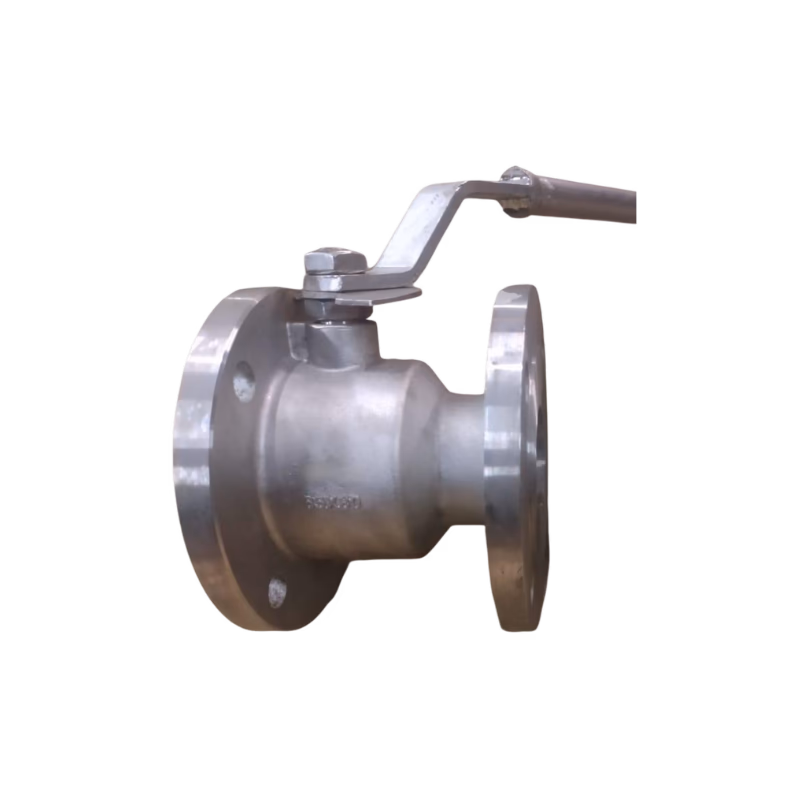

CS / SS - FLUSH BOTTOM BALL VALVE - FL

Flush bottom ball Valve in angular or regular pattern, featuring full bore and single piece construction for complete drainage.

Quick Specifications

Size Range

25 to 300 DN

Pressure

Up to 10 Kg/cm2

Rating

150#

Temperature

Up to 180°C / 220°C

Material

WCB / CF8 / CF8M / CF3M

Standards

ISO 17292 / ISO 12266-1

Compliance StandardsISO 17292 / ISO 12266-1
Size Range25 to 300 DN
Design FeaturesFB, Single Piece, Angular / Regular Pattern, Extended Stem / Jacketed, HL / GO / Pneumatic / Electric - Actuated
Class/Rating150#
End ConnectionsFlanged 150# / 300#
Pressure RatingUp to 10 Kg/cm2
Temperature RangeUp to 180°C / 220°C
