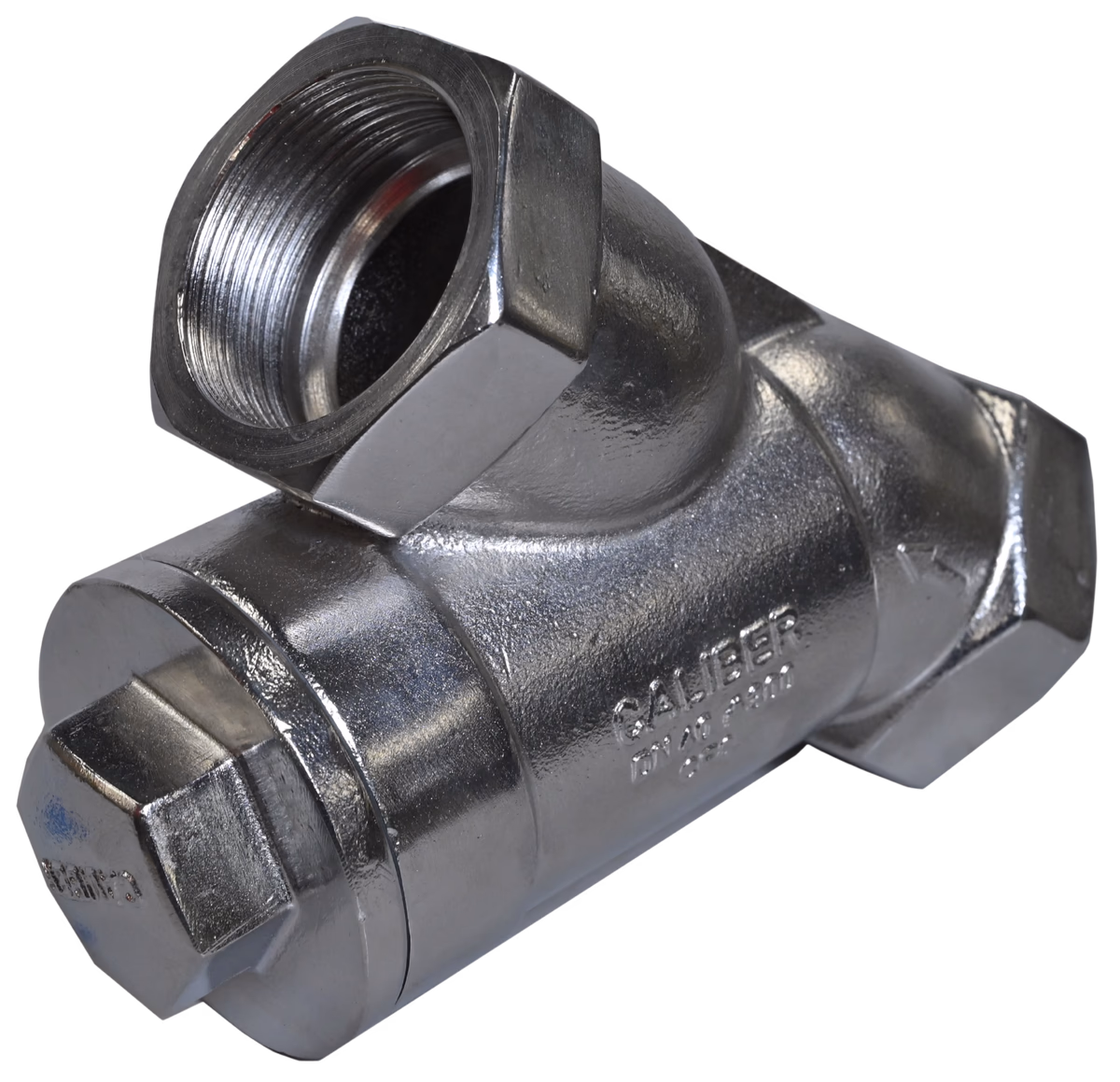

CI / CS / SS STRAINER Y / T Type - SE / SW / BW / FL - Variant 3

Y or T-Type strainer with magnetic filtration option and self-cleaning capability for pipeline protection.

Size Range

15 to 50 DN - SE / SW, 25 to 300 DN - Flanged / BW

Pressure

Up to 16 / 22 / 57 Kg/cm2

Rating

125# / 150# / 300#

Temperature

Up to 180°C / 425°C

Material

CI / WCB / CF8 / CF8M

Standards

CVPL Std / ASME B16.34 / ISO 12266-1

Compliance StandardsCVPL Std / ASME B16.34 / ISO 12266-1

Size Range15 to 50 DN - SE / SW, 25 to 300 DN - Flanged / BW

Design FeaturesMagnetic Filtration / Drain Plug / Self Cleaning / Jacketed

Class/Rating125# / 150# / 300#

End ConnectionsScrewed - BSP / BSPT / NPT, SW / Flanged #150 / #300 / BW

Pressure RatingUp to 16 / 22 / 57 Kg/cm2

Temperature RangeUp to 180°C / 425°C
