CS / SS SWING CHECK VALVE - SE / SW / BW / FL | Swing Check Valves Manufacturer | Caliber Valves

Compliance: API 602 / ISO 15761 / ASME B16.34 / API 598 / ISO 12266-1

Size Range: 25 to 600 DN

Pressure Rating: 150# / 300# / 600#

Swing Check Valves

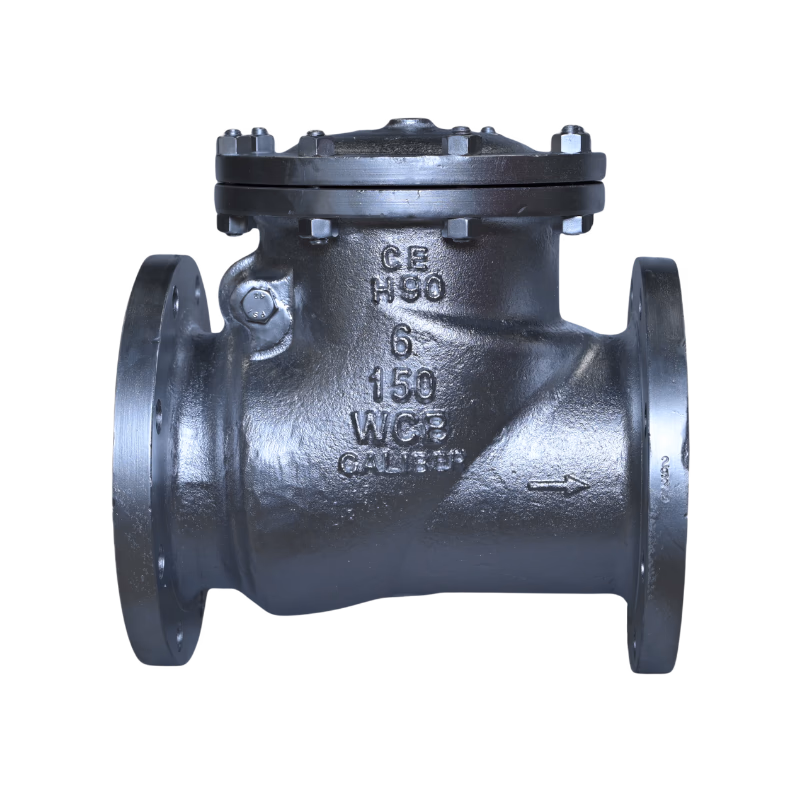

CS / SS SWING CHECK VALVE - SE / SW / BW / FL - Variant 1

Swing type check Valve with bolted cover and gravitational disc mechanism for horizontal or vertical mounting.

Key Specifications
Size25 to 600 DN
PressureUp to 22 / 57 / 115 Kg/cm2
Rating150# / 300# / 600#
TemperatureUp to 427°C / 455°C
MaterialWCB / CF8 / CF8M / Spl. Alloys
StandardsAPI 602 / ISO 15761 / ASME B16.34 / API 598 / ISO 12266-1
ComplianceAPI 602 / ISO 15761 / ASME B16.34 / API 598 / ISO 12266-1
Size Range25 to 600 DN
Design FeaturesSwing Type, Bolted Cover, Gravitational Disc, Soft Seat, Horizontal / Verticle Mounting
Rating150# / 300# / 600#
End ConnectionsScrewed - BSPP / BSPT / NPT, SW - Up to 50 NB, BW / Flanged 150# / 300# / 600#
PressureUp to 22 / 57 / 115 Kg/cm2
TemperatureUp to 427°C / 455°C
