CS / SS GLOBE VALVE - SE / SW / BW / FL | Globe Valves Manufacturer | Caliber Valves

Compliance: BS 1873 / API 600 / ASME B16.34 / API 598 / ISO 12266-1

Size Range: 25 to 600 DN

Pressure Rating: 150# / 300# / 600#

Globe Valves

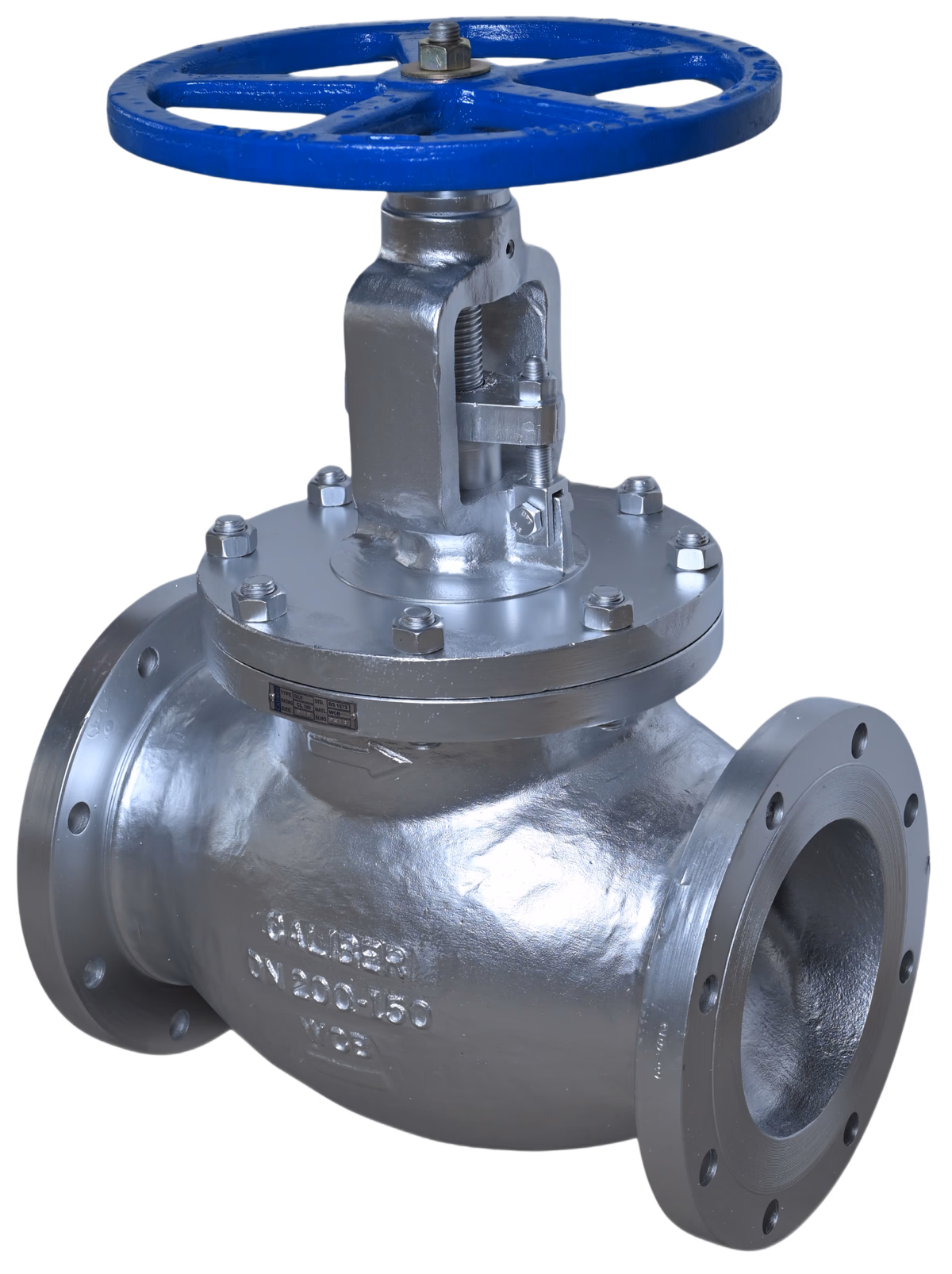

CS / SS GLOBE VALVE - SE / SW / BW / FL - Variant 1

Carbon Steel / Stainless Steel Globe Valve with OS & YT design and bolted or extended bonnet for flow control.

Key Specifications
Size25 to 600 DN
PressureUp to 22 / 57 / 115 Kg/cm2
Rating150# / 300# / 600#
TemperatureUp to 427°C / 455°C
MaterialWCB / CF8 / CF8M / Spl. Alloys
StandardsBS 1873 / API 600 / ASME B16.34 / API 598 / ISO 12266-1
ComplianceBS 1873 / API 600 / ASME B16.34 / API 598 / ISO 12266-1
Size Range25 to 600 DN
Design FeaturesOS & YT, Bolted / Extended Bonnet / Soft Seat / Guided Disc / V Packing / HW / GO
Rating150# / 300# / 600#
End ConnectionsScrewed - BSPP / BSPT / NPT, SW - Up to 50 NB, BW / Flanged 150# / 300# / 600#
PressureUp to 22 / 57 / 115 Kg/cm2
TemperatureUp to 427°C / 455°C
