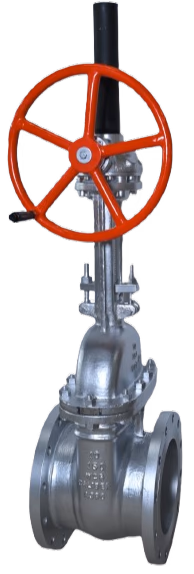

CS / SS GATE VALVE - SE / SW / BW / FL - Variant 1

Carbon Steel / Stainless Steel Gate Valve compliant with API 600, featuring OS & YT design for general industrial applications.

Size Range

25 to 600 DN

Pressure

Up to 22 / 57 / 115 Kg/cm2

Rating

150# / 300# / 600#

Temperature

Up to 427°C / 455°C

Material

WCB / CF8 / CF8M / Spl. Alloys

Standards

API 600 / API 602 / ASME B16.34 / API 598 / ISO 12266-1

Compliance StandardsAPI 600 / API 602 / ASME B16.34 / API 598 / ISO 12266-1

Size Range25 to 600 DN

Design FeaturesOS & YT, Bolted / Extended Bonnet / VacuumPacking / HW / GO / Pnu. Cylinder Actuated

Class/Rating150# / 300# / 600#

End ConnectionsScrewed - BSPP / BSPT / NPT, SW - Up to 50 NB, BW / Flanged 150# / 300# / 600#

Pressure RatingUp to 22 / 57 / 115 Kg/cm2

Temperature RangeUp to 427°C / 455°C

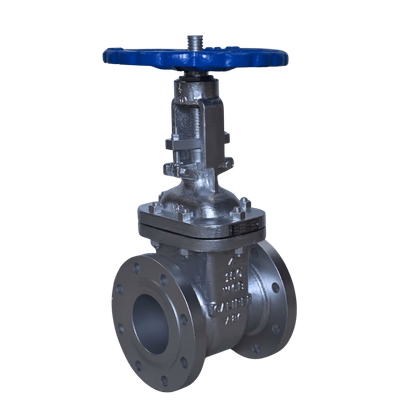

Related Products in Gate Valves
